●低噪音
●流量脉动小
●转速范围广
●工作压力高
●工作可靠
产品详情

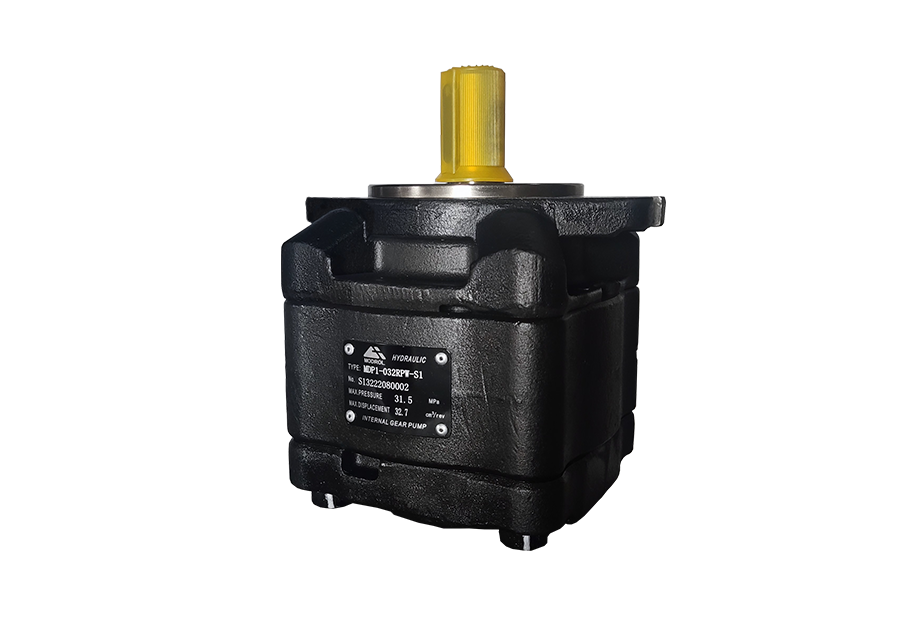

内啮合齿轮泵由泵体，内齿圈，齿轴，前、后盖，配流盘，月牙板，密封棒等部件组成；前、后盖和泵体采用高强度铸铁，结构上采用轴向和径向压力补偿设计。具有工作压力高，转速范围广，噪音低，工作可靠等特点；主要应用于注塑机、压铸机、折弯机和鞋机等行业的液压系统当中。

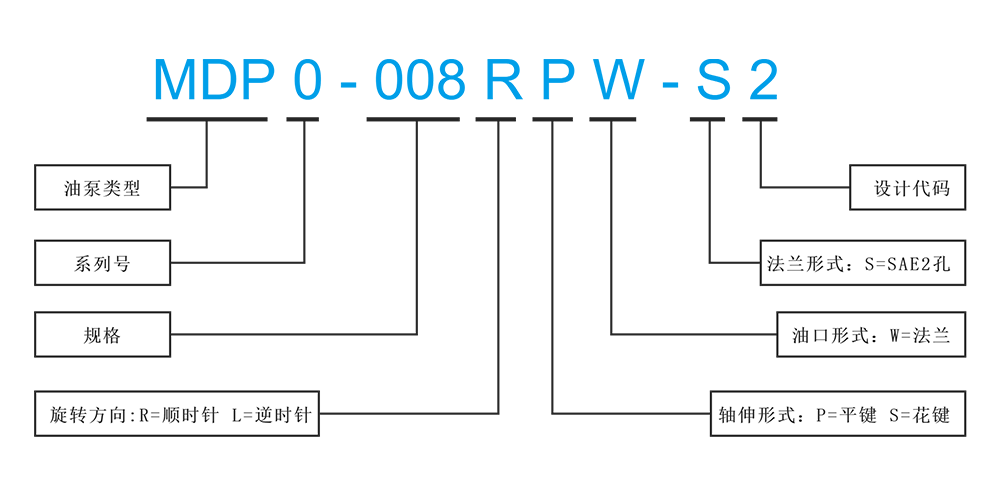

产品型号说明
产品参数
泵规格 | 插件规格 | 排量 [cm³/rev] | 压力 /Mpa | 转速 /rmp | 容积效率 ≥% | 额定压力连续保压时间 | ||
额定压力 | 峰值 | 最低 | 最高 | |||||
MDP0 | 8 | 8 | 30 | 31.5 | 100 | 3000 | 92 | ≤60s |
10 | 10 | 30 | 31.5 | 100 | 3000 | 92 | ≤60s | |
13 | 13 | 30 | 31.5 | 100 | 3000 | 92 | ≤60s | |
16 | 16 | 30 | 31.5 | 100 | 3000 | 92 | ≤60s | |
20 | 20 | 30 | 31.5 | 100 | 3000 | 92 | ≤60s | |
25 | 25 | 30 | 31.5 | 100 | 3000 | 92 | ≤60s | |
MDP1 | 25 | 25 | 30 | 31.5 | 100 | 3000 | 92 | ≤60s |
32 | 32 | 30 | 31.5 | 100 | 3000 | 92 | ≤60s | |
40 | 40 | 30 | 31.5 | 100 | 3000 | 92 | ≤60s | |
50 | 50 | 30 | 31.5 | 100 | 3000 | 92 | ≤60s | |
63 | 63 | 30 | 31.5 | 100 | 3000 | 92 | ≤60s | |
MDP2 | 80 | 80 | 30 | 31.5 | 100 | 3000 | 92 | ≤60s |
100 | 100 | 30 | 31.5 | 100 | 3000 | 92 | ≤60s | |
125 | 125 | 30 | 31.5 | 100 | 3000 | 92 | ≤60s | |
145 | 145 | 25 | 28 | 100 | 3000 | 92 | ≤60s | |
160 | 160 | 25 | 28 | 100 | 3000 | 92 | ≤60s | |
备注：详细油泵参数和相关资料可至资料下载样本查看
（蒙德MDP系列高压油泵.PDF）
